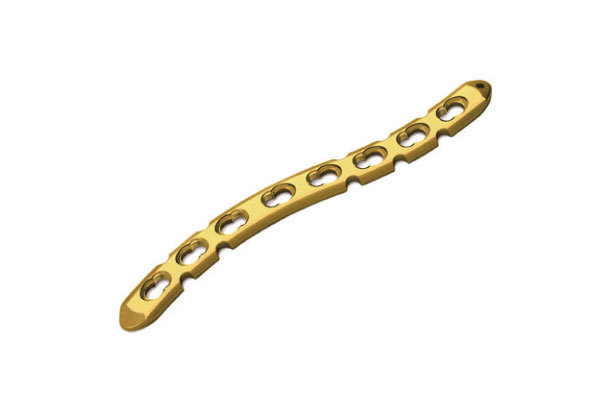

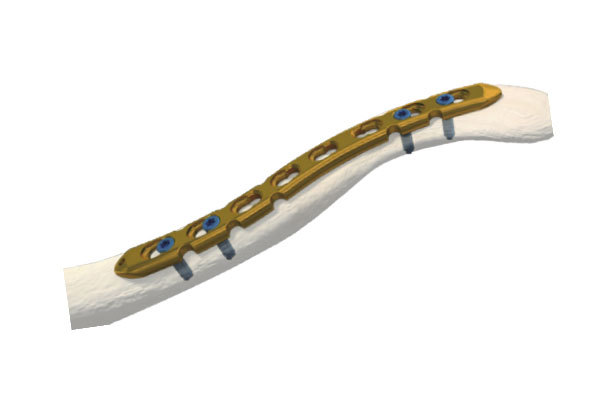

3.5mm Reconstruction Clavicle LCP - II
Thickness:
For screws:
Previous: 3.5mm Reconstruction Clavicle LCP - I
Next: 3.5mm Reconstruction Clavicle LCP - III
Specifications
Model: ZSZ10, Thickness: 3.0mm, Holes distance: 13mm, For screws HA3.5/HC3.5
Product No. | Holes | Direction | Material | Remark |
34104106 | 6 | Left | PT | |
34104107 | 7 | Left | PT | |
34104108 | 8 | Left | PT | |
34104109 | 9 | Left | PT | |
34104110 | 10 | Left | PT | |
34104206 | 6 | Right | PT | |
34104207 | 7 | Right | PT | |
34104208 | 8 | Right | PT | |
34104209 | 9 | Right | PT | |
34104210 | 10 | Right | PT |
